دوزینگ پمپ ProMinent Gamma x

این پمپ از تکنولوژی بسیار پیشرفته که در کمپانی پرومیننت X نام گذاری شده برخوردار است. و در این سری پیشتاز است.

آی پی این پمپ 66 است که در بین این رسته پمپ ها بالاترین است.

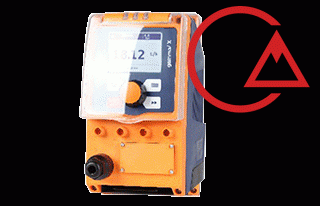

پمپ تزریق مواد شیمیایی با قابلیت بلوتوث

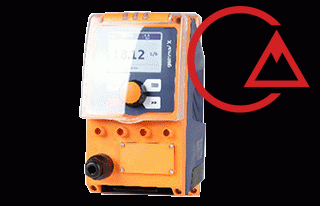

پمپ تزریق مواد شیمیایی با قابلیت بلوتوث

معنای آی پی

عدد ده گان

مقاومت در برابر گرد و غبار

  • IP0X: هیچ
  • IP1X: مقاوم در برابر اشیاء با قطر بیشتر از ۵٠ میلی متر
  • IP2X: مقاوم در برابر اشیاء با قطر بیشتر از ١٢.۵ میلی متر
  • IP3X: مقاوم در برابر اشیاء با قطر بیشتر از ٢.۵ میلی متر
  • IP4X: مقاوم در برابر اشیاء با قطر بیشتر از ١ میلی متر
  • IP5X: مقاوم در برابر اشیاء (ورود جزئی ذرات خیلی ریز)
  • IP6X: مقاومت نسبت به ورود گرد و غبار.

عدد یکان

مقاومت در برابر آب

  • IPX0: هیچ
  • IPX1: مقاوم در برابر باران
  • IPX2: مقاوم در برابر باران تا زاویه ١۵ درجه نسبت به زاویه قائم
  • IPX3: مقاوم در برابر آب پاشیدن
  • IPX4: مقاوم در برابر ریختن آب زیاد
  • IPX5: مقاوم در برابر جت آب
  • IPX6: مقاوم در برابر جت آب مستمر
  • IPX7: مقاوم در برابر غوطه وری در آب
  • IPX8: مقاوم در برابر ماندن زیر یک متر آب

ProMinent Gamma x is the newest dosing pump type of ProMinent dosing equipments.

prominent gala was the older version of gamma series (which is available yet)

formerly there were types ProMinent Gamma4 and Gamma5 like beta4 and beta5

ProMinent Gamma x

ProMinent Gaxa Gammax
ProMinent Gaxa Gammax
ProMinent Gammax GMXA Solenoid Dosing Pump
ProMinent Gammax GMXA Solenoid Dosing Pump
ProMinent Gammax GMXA Solenoid Dosing Pump
ProMinent Gammax GMXA Solenoid Dosing Pump
ProMinent Gammax GMXA Solenoid Dosing Pump
ProMinent Gammax GMXA Solenoid Dosing Pump
ProMinent Gammax GMXA Solenoid Dosing Pump
ProMinent Gammax GMXA Solenoid Dosing Pump
ProMinent Gammax GMXA Solenoid Dosing Pump
ProMinent Gammax GMXA Solenoid Dosing Pump
ProMinent Gammax GMXA Solenoid Dosing Pump
ProMinent Gammax GMXA Solenoid Dosing Pump

GMXa Type Capacity

bar l/h bar l/h

1602 16 2.3 2504 25 3.8

1604 16 3.6 1009 10 9.0

0708 7 7.6 0715 7 14.5

0414 4 14.0 0424 4 24.0

0220 2 19.7 0245 2 45.0

Liquid end/valve material

PP Polypropylene/PVDF, with self-bleeding design polypropylene/polypropylene

NP Clear acrylic/PVDF, with self-bleeding design clear acrylic/PVC

PV PVDF/PVDF

TT PTFE/PTFE

SS Stainless steel 1.4404/1.4404

Seal/diaphragm material

E EPDM/PTFE coated, only with PP and NP, self-bleeding design

B FKM-B/PFTE coated, only with PP and NP, self-bleeding design

T PTFE/PFTE coated

S Diaphragm additionally with FKM coating for siliceous media, FKM-B seals on PP and NP, PTFE on TT, PV and SS

Liquid end version

0 Non-bleed version, no valve springonly with NP, TT and SS and type 0245

1 Non-bleed version, with valve springonly with NP, TT and SS and type 0245

2 Bleed function, no valve springsonly with PP, PV, NP not for type 0245

3 Bleed function, with valve springsonly with PP, PV, NP not for type 0245

4 Version for highly viscous mediaonly with PV, types 1604, 0708, 0414, 2504, 1009, 0715, 0424

9 self-bleeding with bypass (SEK), only with PP/NP, not for types 2504 and 0245

Hydraulic connections

0 Standard according to technical data

5 Discharge side connection for hose 12/6, suction side standard, only with materials PP, NP and PV

9 Discharge side connection for hose 10/4, suction side standard , only with materials PP, NP and PV

Diaphragm rupture indicator

0 Without diaphragm rupture indicator

1 With diaphragm rupture indicator, optical sensor

Version

0 Standard

Logo

0 with ProMinent ® logo

Power supply

U 100-230 V, ±10 %, 50/60 Hz

Cable and plug

A 2 m European

B 2 m Swiss

C 2 m Australian

D 2 m USA

E 2 m Great Britain

1 2 m, open-ended

Relay, pre-set to

0 No relay

1 1 x changeover contact 230 V – 2 A, fault indicating relay N/C

4 2 x N/O 24 V – 100 mA, such as 1 + pacing relay

C 1 x N/O 24 V – 100 mA, such as 1 + 4 – 20 mA output

Accessories

0 No accessories

1 With foot valve and discharge valve, 2 m PVC suction

tubing, 5 m PE delivery tubeonly with PP, PV and NP, not

with PVT4

Control version

0 Manual + external 1:1 with pulse control

3 Manual + external with pulse control + analogue

0/4 – 20 mA

4 such as 0 + 4 week process timer

5 such as 3 + 4 week process timer

C such as 3 + CANopen

R as 3 + PROFIBUS ® DP interface, M12

– no relay with PROFIBUS ® version

Metering monitor

0 Pulse signal input

Pause/level

0 Pause N/C, level N/C

Language

DE German

EN English

FR French

ES Spanish

Why gamma/ X Features Details Specifications Service Video library
ProMinent COMPANYCONTACT

Here you can see why
our new metering pump is called gamma/ X.

The only thing difficult to meter here are
the many arguments in favor of the gamma/ X.

The new gamma/ X is the first metering pump with predictive intelligence. Thanks to its controlled solenoid drive with sensor-free pressure measurement, it detects hydraulic faults even in the case of minimal deviations – immediately and optimally matching its output to the pressure conditions and properties of the medium.
X-tremely cleverX-cellent reliabilityX-tended productivityX-pert for simplicity
Impressive overall package with incredible
attention to detail: the new gamma/ X.

The new gamma/ X
also has the right inner values.
Output
1 ml – 45 l/h
at back-pressure of 25 – 2 bar ml/stroke
0,2 – 3,7ml
Suction lift
2,5 – 6 m

X-tremely clever: The ProMinent
added-value service

The most innovative metering pump in the market
also comes with the world’s best service.

The gamma/ X, our new controlled
solenoid-driven diaphragm
metering pump, is well ahead
of its time. Just like our service:
We offer you first-class support –
from the design of your system,
through configuration of your
gamma/ X, all the way to
implementation and start-up.

Proceed to sales
Have our sales team advise you
on the gamma/ X and request a personal
meeting on your premises with one
of our sales representatives.
Request for appointment Proceed to application
consulting
Make use of our technical application
consulting service to discover the benefits
that gamma/ X can bring to your own
specific requirements.
Request for technical application consulting Proceed to technical
information
Request a download link to detailed
technical information on the gamma/ X.
Download

gamma/ X-Video library

PROMINENT DIALOG
Contact
Newsletter
Seminars
Exhibitions and event

further to www.prominent
SHARE CONTENT
Facebook
Google+
Xing
LinkedIn
Mail
COMPANY
About us
News
Press
Locations

Spare Parts Kit for gamma/ X
pk_1_008
Type Wetted materials Order no.
Type 1602 PVT, PPT, NPT 1023109
TTT 1001739
SST 1001731
Type 1604 and Type 2504 PVT, PPT, NPT 1035332
PVT HV 1035342

TTT 1035330

SST 1035331
Type 0708 and Type 1009 PVT, PPT, NPT 1023111
PVT HV 1019067
TTT 1001741
SST 1001733
Type 0414 and Type 0715 PVT, PPT, NPT 1023112
PVT4 1019069
TTT 1001742
SST 1001734
Type 0220 and Type 0424 PVT, PPT, NPT 1051129
PVT HV 1051134
TTT 1051151
SST 1051139
Type 0245 PVT, PPT, NPT 1051130
TTT 1051152
SST 1074650
Type Wetted materials Order no.
Type 1602 PVT7, NPT7 1047830
Type 1604 PVT7, NPT7 1047858
Type 0708 and Type 1009 PVT7, NPT7 1047832
Type 0414 and Type 0715 PVT7, NPT7 1047833
Type 0220 and Type 0424 PVT7, NPT7 1051111Imprint › Data protection › Gtc › © 2015 Copyright ProMinent. All rights reserved.
