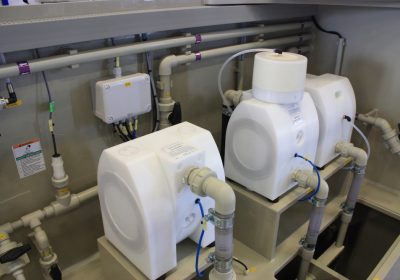

پمپ دیافراگمی اهمیت ویژه ای در جابجایی مواد شیمیایی و پر کردن مخازن و بشکه ها دارد. این پمپ با جنس تفلون تولید میشود که در برابر اسید سولفوریک و دیگر اسید ها سازگاری کامل دارد. مزایای جنس تفلون سازگاری با تمام مواد شیمیایی سازگاری با دما و شرایط سیال این پمپ های دیافراگمی مقاوم نسبت به خوردگی با قابلیت نصب فلنج و کیفیت ساخت فوق العاده بالا هستند. ALMATEC air-operated diaphragm pump, E-Series Housing material: PTFE Diaphragm material: PTFE/EPDM compound Type and material of product valves: Ball valves. PTFE Optional equipment (separate manual for the barrier chamber system): Flange connection PN 10 E15TTZ ALMATEC air-operated diaphragm pumps are constructed according to the state of the art and they are reliable. Imminent danger by operating error or misuse can lead to damages of properties and/or persons. The pumps are to be applied for the intended use and in a safety-related proper condition only. Each person working on the ALMATEC air-operated diaphragm pumps concerning installation, start-up, handling or maintenance has to read this manual completely and in an attentive way and has to follow all mentioned procedures and safety notes. General description of the machine, appropriate use and residual dangers The ALMATEC E-Series pumps are oscillating positive displacement pumps and are based on the functional principle of double diaphragm pumps. The basic configuration consists of two external side housings with a center housing between them. Each of the side housings contains a product chamber which is sealed against the center housing by a diaphragm. The two diaphragms are interconnected by a piston rod. Directed by an air control system, the diaphragms are alternately loaded with compressed air so that they move back and forth. In the first figure, the compressed air has forced the left-hand diaphragm towards the product chamber and displaced the liquid from that chamber through the open valve at the top to the discharge port. Liquid is simultaneously drawn in by the right-hand diaphragm, thus refilling the second product chamber. When the end of the stroke is reached, it reverses automatically and the cycle is repeated in the opposite direction. In the second figure, liquid is drawn in by the left-hand diaphragm and displaced by the right-hand diaphragm. The appropriate use of an Almatec air-operated diaphragm pump of the E-Series refers to the liquid transport taking into account the operation parameter mentioned in this manual and in compliance of the given terms for commissioning, operation, assembly, disassembly and maintenance. Even if all necessary safety measures described in this manual have been met, a residual danger exists by leakages or mechanical damages. At sealing areas or connections liquid can be released uncontrollably then.
